Hydraulické armatúry JIC

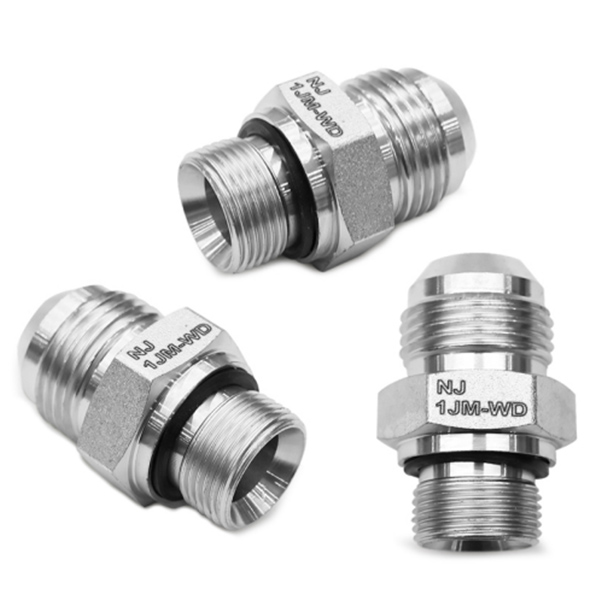

Tvarovka JIC, známa aj ako tvarovka Spoločnej priemyselnej rady, je typ závitu bežne používaný v hydraulických systémoch. Ide o štandardizovaný závit s uhlom rozšírenia 37 stupňov, ktorý je všeobecne uznávaný pre svoju spoľahlivosť a jednoduchú inštaláciu.
Popis
Tento produkt je tvarovka JIC (alebo Joint Industry Council), oba konce majú závit JIC, JIC je definovaný normami SAE J514 a MIL-DTL-18866, ide o typ rozšíreného tvarovky opracovanej s 37-stupňovou rozšírenou dosadacou plochou.
Bežne sa používajú a vyrábajú z mosadze, uhlíkovej ocele a nehrdzavejúcej ocele. Hydraulické armatúry JIC sú bežné vo väčšine hydraulických systémov. Závit JIC sa tiež delí na vonkajší závit JIC a vnútorný závit JIC s otočnou maticou.
JIC je možné široko kombinovať s rôznymi vláknami, ako napríklad:

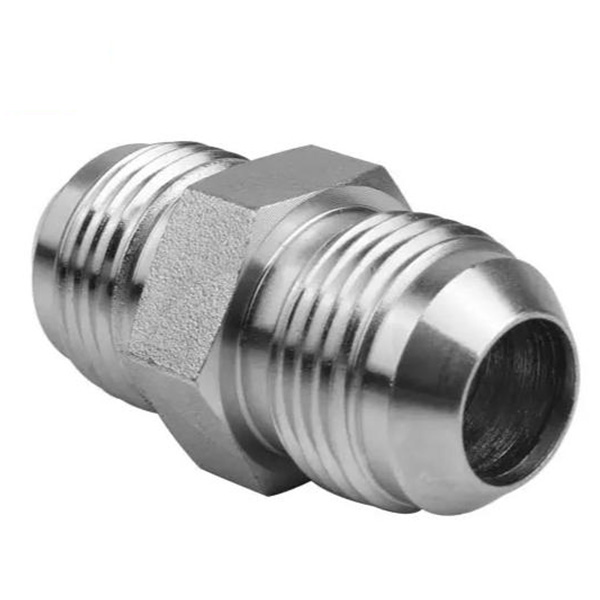

Hydraulické adaptéry JIC-JIC /1J

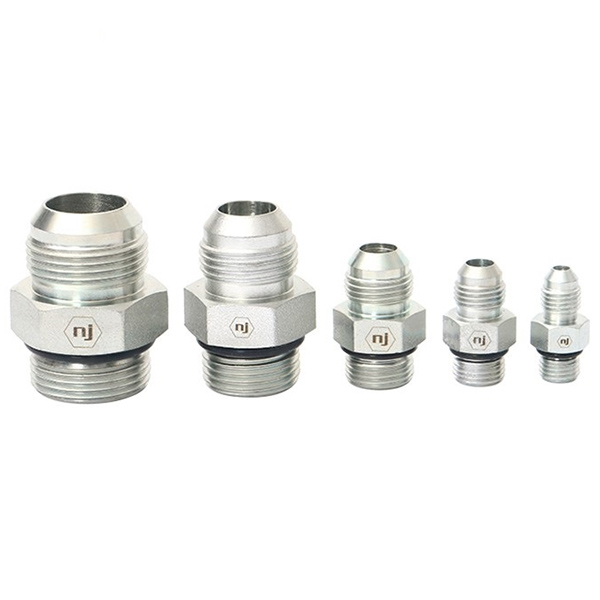

Hydraulické adaptéry JIC na ORB (s O-krúžkovým vývodom)/1JO

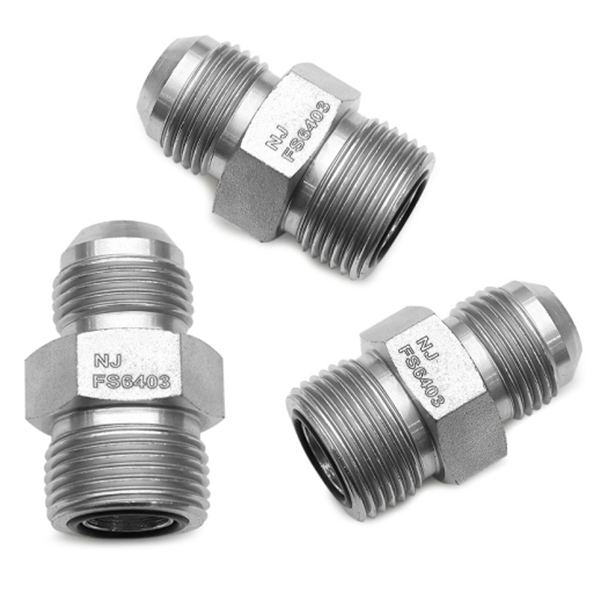

Hydraulické adaptéry JIC na ORFS (s tesnením O-krúžkom)/1JF

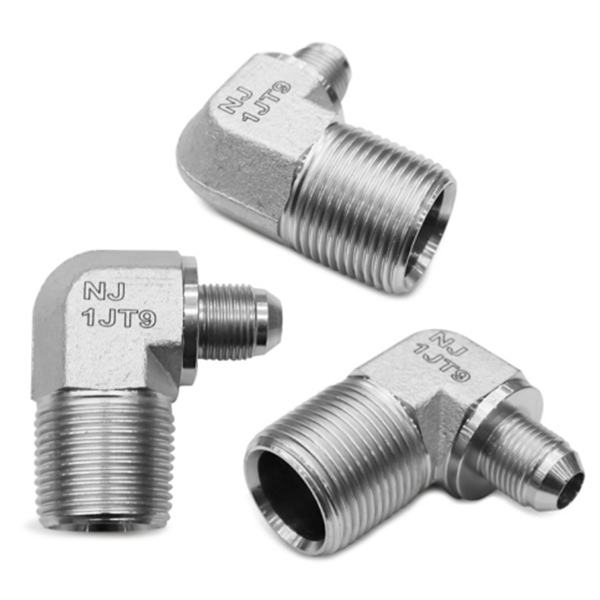

Hydraulické adaptéry JIC na NPTF 90 stupňové koleno/1JN9

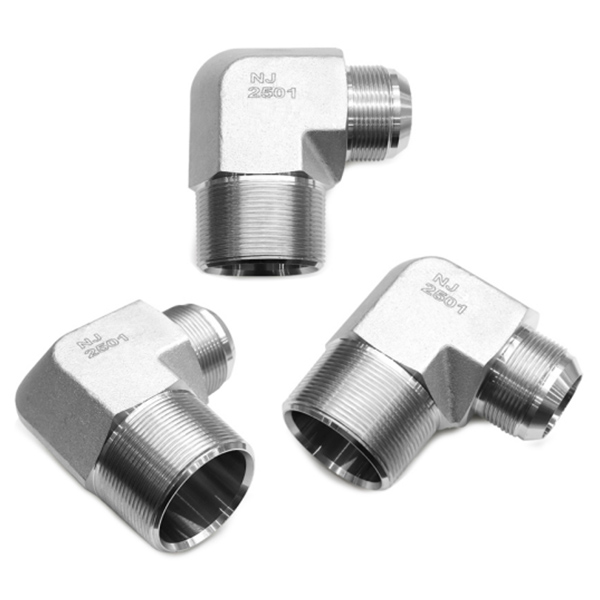

Hydraulické adaptéry JIC na BSPT s uhlom 90 stupňov/1JT9
Hydraulické adaptéry JIC na metrické sústavy/1JM

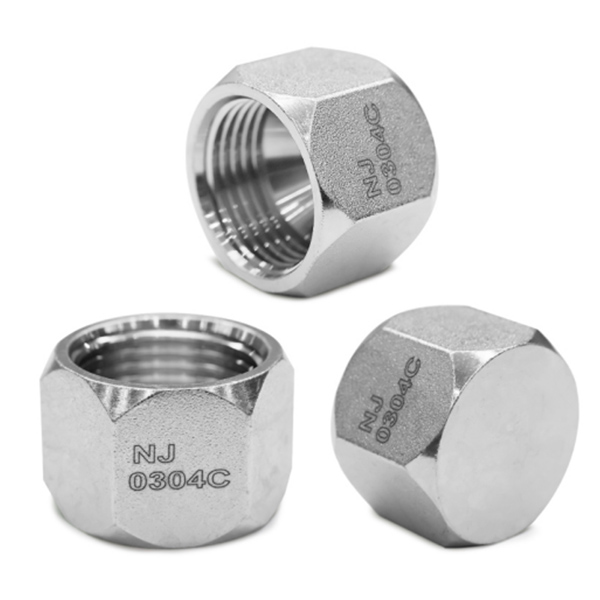

JIC uzávery /0304C

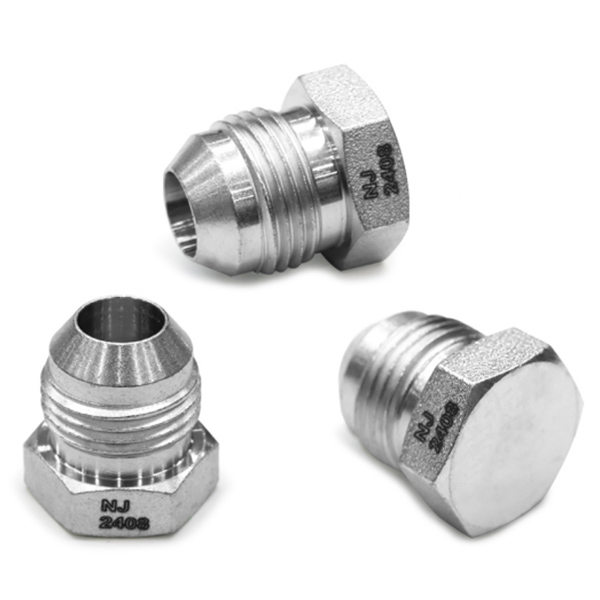

Zátky JIC/2408
Matica rúrky JIC/0318

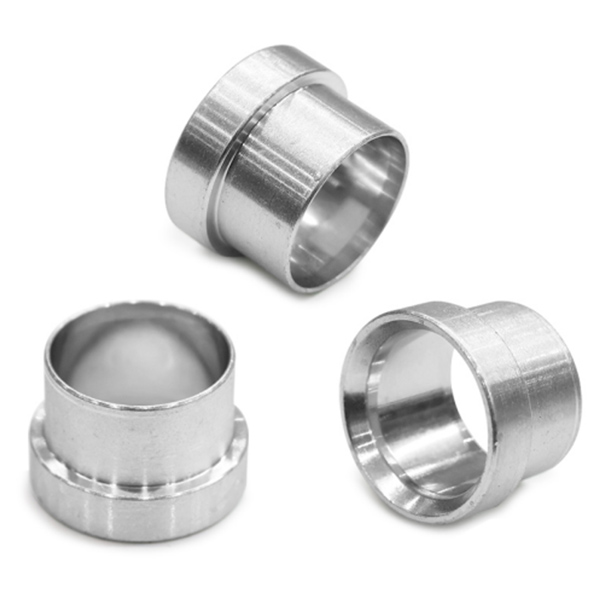

JIC objímka na rúrku/0319Technické dáta
1. Hydraulické adaptéry JIC-JIC /1J
| A | B | Označenie | L | E | F | H1 | ||
| pomlčka | JIC | pomlčka | JIC | mm | mm | mm | mm | |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1J-0606 | 31 | 12 | 12 | 11.1 |
| -7 | 7 / 16-20 | -7 | 7. 16. 20 | 1J-0707 | 35 | 14 | 14 | 12.7 |
| -8 | 2001-2-20 | -7 | 7. 16. 20 | 1J-0807 | 35 | 14 | 14 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1J-0808 | 35 | 14 | 14 | 14.3 |
| -9 | 9 / 16-18 | -9 | 7 / 16-20 | 1J-0907 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1J-0908 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1J-0909 | 36 | 14 | 14 | 15.9 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1J-1207 | 38 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1J-1209 | 39 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1J-1212 | 41 | 17 | 17 | 20.6 |
| -14 | 2007-8-14 | -7 | 7. 16. 20 | 1J-1407 | 43 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -8 | 1 / 2-20 | 1J-1408 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1J-1409 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1J-1412 | 45 | 19 | 17 | 23.8 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1J-1414 | 48 | 19 | 19 | 23.8 |
| -17 | 1.1 / 16-12 | -7 | 7 / 16-20 | 1J-1707 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1J-1709 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -12 | 7 / 16-20 | 1J-1712 | 50 | 22 | 17 | 28.6 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1J-1714 | 52 | 22 | 19 | 28.6 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1J-1717 | 55 | 22 | 22 | 28.6 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1J-1917 | 55 | 23 | 22 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1J-1919 | 56 | 23 | 23 | 31.8 |
| -21 | 1.5 / 16-12 | -7 | 7 / 16-20 | 1J-2107 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -9 | 9 / 16-18 | 1J-2109 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1J-2112 | 51 | 23 | 17 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1J-2114 | 53 | 23 | 19 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1J-2117 | 56 | 23 | 22 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1J-2121 | 57 | 23 | 23 | 34.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1J-2617 | 59 | 24 | 22 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1J-2621 | 61 | 24 | 23 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1J-2626 | 62 | 24 | 24 | 42.9 |
| -30 | 1.7 / 8-12 | -17 | 1.1 / 16-12 | 1J-3017 | 64 | 28 | 22 | 50.8 |
| -30 | 1.7 / 8-12 | -21 | 1.5 / 16-12 | 1J-3021 | 66 | 28 | 23 | 50.8 |
| -30 | 1.7 / 8-12 | -26 | 1.5 / 8-12 | 1J-3026 | 67 | 28 | 24 | 50.8 |
| -30 | 1.7 / 8-12 | -30 | 1.7 / 8-12 | 1J-3030 | 70 | 28 | 28 | 50.8 |
| -40 | 2.1 / 2-12 | -21 | 1.5 / 16-12 | 1J-4021 | 76 | 34 | 23 | 66.7 |
| -40 | 2.1 / 2-12 | -26 | 1.5 / 8-12 | 1J-4026 | 77 | 34 | 24 | 66.7 |
| -40 | 2.1 / 2-12 | -30 | 1.7 / 8-12 | 1J-4030 | 80 | 34 | 28 | 66.7 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1J-4040 | 86 | 34 | 34 | 66.7 |
2. Hydraulické adaptéry JIC na ORB (s O-krúžkovým vývodom)/1JO
| A | B | Označenie | L | E | F | H1 | ||
| pomlčka | JIC | pomlčka | OSN | mm | mm | mm | mm | |
| -5 | 5 / 16-24 | -7 | 7 / 16-20 | 1JO-0507 | 29 | 12 | 9 | 14.3 |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1JO-0606 | 28 | 12 | 8 | 12.7 |
| -6 | 2003-8-24 | -7 | 7 / 16-20 | 1JO-0607 | 29 | 12 | 9 | 14.3 |
| -7 | 7 / 16-20 | -7 | 7 / 16-20 | 1JO-0707 | 29 | 14 | 9 | 14.3 |
| -7 | 7 / 16-20 | -8 | 1 / 2-20 | 1JO-0708 | 29 | 14 | 9 | 15.9 |
| -7 | 7 / 16-20 | -9 | 9 / 16-18 | 1JO-0709 | 30 | 14 | 10 | 17.5 |
| -7 | 7 / 16-20 | -12 | 3 / 4-16 | 1JO-0712 | 33 | 14 | 11 | 22.2 |
| -7 | 7 / 16-20 | -14 | 7 / 8-14 | 1JO-0714 | 38 | 14 | 13 | 25.4 |
| -7 | 7 / 16-20 | -17 | 1.1 / 16-12 | 1JO-0717 | 42 | 14 | 15 | 31.8 |
| -7 | 7 / 16-20 | -21 | 1.5 / 16-12 | 1JO-0721 | 43 | 14 | 15 | 38.1 |
| -8 | 2001-2-20 | -7 | 7 / 16-20 | 1JO-0807 | 31 | 14 | 9 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1JO-0808 | 29 | 14 | 9 | 15.8 |
| -8 | 2001-2-20 | -9 | 9 / 16-18 | 1JO-0809 | 33 | 14 | 9 | 17.5 |
| -8 | 2001-2-20 | -12 | 3 / 4-16 | 1JO-0812 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -7 | 7 / 16-20 | 1JO-0907 | 29 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1JO-0908 | 30 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1JO-0909 | 30 | 14 | 10 | 17.5 |
| -9 | 9 / 16-18 | -12 | 3 / 4-16 | 1JO-0912 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -14 | 7 / 8-14 | 1JO-0914 | 37 | 14 | 13 | 25.4 |
| -9 | 9 / 16-18 | -17 | 1.1 / 16-12 | 1JO-0917 | 40 | 14 | 15 | 31.8 |
| -9 | 9 / 16-18 | -21 | 1.5 / 16-12 | 1JO-0921 | 43 | 14 | 15 | 38.1 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1JO-1207 | 34 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -8 | 1 / 2-20 | 1JO-1208 | 38 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1JO-1209 | 35 | 17 | 10 | 22.2 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1JO-1212 | 36 | 17 | 11 | 22.2 |
| -12 | 2003-4-16 | -14 | 7 / 8-14 | 1JO-1214 | 40 | 17 | 13 | 25.4 |
| -12 | 2003-4-16 | -17 | 1.1 / 16-12 | 1JO-1217 | 43 | 17 | 15 | 31.8 |
| -12 | 2003-4-16 | -21 | 1.5 / 16-12 | 1JO-1221 | 43 | 17 | 15 | 38.1 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1JO-1409 | 43 | 19 | 9 | 25.4 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1JO-1412 | 39 | 19 | 11 | 25.4 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1JO-1414 | 43 | 19 | 13 | 25.4 |
| -14 | 2007-8-14 | -17 | 1.1 / 16-12 | 1JO-1417 | 46 | 19 | 15 | 31.8 |
| -14 | 2007-8-14 | -21 | 1.5 / 16-12 | 1JO-1421 | 46 | 19 | 15 | 38.1 |
| -14 | 2007-8-14 | -26 | 1.5 / 8-12 | 1JO-1426 | 50 | 19 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1JO-1709 | 47 | 22 | 9 | 31.8 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-16 | 1JO-1712 | 43 | 22 | 11 | 31.8 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1JO-1714 | 45 | 22 | 13 | 31.8 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1717 | 48 | 22 | 15 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1719 | 48 | 22 | 15 | 34.9 |
| -17 | 1.1 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1721 | 48 | 22 | 15 | 38.1 |
| -17 | 1.1 / 16-12 | -26 | 1.5 / 8-12 | 1JO-1726 | 48 | 22 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -30 | 1.7 / 8-12 | 1JO-1730 | 55 | 22 | 15 | 54 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1917 | 51 | 23 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1919 | 51 | 23 | 15 | 34.9 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1921 | 51 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1JO-2112 | 51 | 23 | 11 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1JO-2114 | 47 | 23 | 13 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1JO-2117 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JO-2119 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1JO-2121 | 49 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -26 | 1.5 / 8-12 | 1JO-2126 | 55 | 23 | 15 | 47.6 |
| -21 | 1.5 / 16-12 | -30 | 1.7 / 8-12 | 1JO-2130 | 56 | 23 | 15 | 54 |
| -26 | 1.5 / 8-12 | -14 | 7 / 8-14 | 1JO-2614 | 57 | 24 | 13 | 42.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1JO-2617 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1JO-2621 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1JO-2626 | 55 | 24 | 15 | 47.6 |
| -26 | 1.5 / 8-12 | -30 | 1.7 / 8-12 | 1JO-2630 | 55 | 24 | 15 | 54 |
| -30 | 1.7-8-12 | -26 | 1.5 / 8-12 | 1JO-3026 | 60 | 28 | 15 | 54 |
| -30 | 1.7-8-12 | -30 | 1.7 / 8-12 | 1JO-3030 | 58 | 28 | 15 | 54 |
| -30 | 1.7 / 8-12 | -40 | 2.1 / 2-12 | 1JO-3040 | 64 | 28 | 15 | 69.9 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1JO-4040 | 66 | 34 | 15 | 69.9 |
3. Hydraulické adaptéry JIC na ORFS (tesnenie s O-krúžkom)/1JF
| Vlákno A | Vlákno B | Označenie | L | E | F | H1 | ||
| pomlčka | JIC | pomlčka | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | 1-14 | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | 1-14 | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
4. Hydraulické adaptéry JIC na NPTF s 90-stupňovým kolenom/1JN9
| Vlákno A | Vlákno B | Označenie | E | F | S1 | |||
| pomlčka | JIC | pomlčka | NPT | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-27 | 1JN9-0702 | 25 | 21 | 11 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-18 | 1JN9-0704 | 27 | 26 | 14 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-18 | 1JN9-0706 | 30 | 31 | 19 | |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JN9-0708 | 31 | 37 | 22 | |
| -07 | 7 / 16-20 | -12 | 3 / 4-14 | 1JN9-0712 | 33 | 44 | 27 | |
| -08 | 1 / 2-20 | -02 | 1 / 8-27 | 1JN9-0802 | 27 | 24 | 14 | |
| -08 | 1 / 2-20 | -04 | 1 / 4-18 | 1JN9-0804 | 27 | 26 | 14 | |
| -08 | 1 / 2-20 | -06 | 3 / 8-18 | 1JN9-0806 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1JN9-0902 | 27 | 21 | 14 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1JN9-0904 | 27 | 26 | 14 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1JN9-0906 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JN9-0908 | 32 | 37 | 22 | |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JN9-0912 | 33 | 40 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-18 | 1JN9-1204 | 32 | 29 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-18 | 1JN9-1206 | 32 | 31 | 19 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JN9-1208 | 35 | 37 | 22 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JN9-1212 | 38 | 44 | 27 | |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JN9-1216 | 39 | 50 | 33 | |
| -14 | 7 / 8-14 | -04 | 1 / 4-18 | 1JN9-1404 | 38 | 34 | 22 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-18 | 1JN9-1406 | 38 | 33 | 22 | |
5. Hydraulické adaptéry JIC na BSPP s uhlom 45 stupňov/1JG4
| A | B | Označenie | E | F | S1 | H | |||
| pomlčka | JIC | pomlčka | BSPP | mm | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JG4-0702 | 18 | 22 | 11 | 14 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JG4-0704 | 22 | 26 | 14 | 19 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JG4-0706 | 23 | 33 | 19 | 22 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JG4-0904 | 22 | 28 | 14 | 19 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JG4-0906 | 23 | 32 | 19 | 22 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JG4-0908 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JG4-1204 | 25 | 31 | 19 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JG4-1206 | 25 | 32 | 19 | 22 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JG4-1208 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-12 | 1JG4-1212 | 30 | 37 | 27 | 32 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JG4-1406 | 28 | 33 | 22 | 22 | |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JG4-1408 | 28 | 36 | 22 | 27 | |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JG4-1412 | 32 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JG4-1708 | 33 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JG4-1712 | 33 | 37 | 27 | 32 | |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JG4-1716 | 35 | 44 | 33 | 41 | |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JG4-2116 | 42 | 44 | 33 | 41 | |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JG4-2620 | 40 | 47 | 41 | 50 | |
| -30 | 1.7 / 8-12 | -24 | 1.1.2-11 | 1JG4-3024 | 45 | 51 | 48 | 55 | |
6. Hydraulické adaptéry s 90-stupňovým kolenom JIC na BSPT/1JT9
| A | B | Označenie | E | F | S1 | ||
| pomlčka | JIC | pomlčka | PTSD | mm | mm | mm | |
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JT9-0702 | 25 | 21 | 11 |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JT9-0704 | 27 | 26 | 14 |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JT9-0706 | 28 | 28.4 | 19 |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JT9-0708 | 30 | 36 | 22 |
| -08 | 1 / 2-20 | -02 | 1 / 8-28 | 1JT9-0802 | 27 | 24 | 14 |
| -08 | 1 / 2-20 | -04 | 1 / 4-19 | 1JT9-0804 | 27 | 26 | 14 |
| -08 | 1 / 2-20 | -06 | 3 / 8-19 | 1JT9-0806 | 28 | 28.4 | 19 |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1JT9-0902 | 27 | 24 | 14 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JT9-0904 | 27 | 26 | 14 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JT9-0906 | 29 | 29.0 | 19 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JT9-0908 | 32 | 36 | 22 |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JT9-0912 | 35 | 44 | 27 |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JT9-1204 | 32 | 28 | 19 |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JT9-1206 | 32 | 31 | 19 |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JT9-1208 | 35 | 36 | 22 |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JT9-1212 | 38 | 43 | 27 |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JT9-1216 | 43 | 50 | 33 |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JT9-1406 | 38 | 32 | 22 |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JT9-1408 | 37 | 36 | 22 |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JT9-1412 | 41 | 43 | 27 |
| -14 | 7 / 8-14 | -16 | 1-11 | 1JT9-1416 | 45 | 50 | 33 |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JT9-1708 | 44 | 40 | 27 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JT9-1712 | 44 | 43 | 27 |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JT9-1716 | 48 | 50 | 33 |
| -17 | 1.1 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-1720 | 49 | 57 | 41 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-14 | 1JT9-2112 | 49 | 48 | 33 |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JT9-2116 | 49 | 50 | 33 |
| -21 | 1.5 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-2120 | 51 | 57 | 41 |
| -26 | 1.5 / 8-12 | -16 | 1-11 | 1JT9-2616 | 56 | 57 | 41 |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-2620 | 53 | 57 | 41 |
| -26 | 1.5 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-2624 | 56 | 63 | 48 |
| -30 | 1.7 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-3020 | 63 | 63 | 48 |
| -30 | 1.7 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-3024 | 63 | 63 | 48 |
| -40 | 2.1 / 2-12 | -32 | 2-11 | 1JT9-4032 | 75 | 67 | 63 |
7. Hydraulické adaptéry JIC na metrické sústavy/1JM
| Vlákno A | Vlákno B | Označenie | L | E | F | H1 | ||
| pomlčka | JIC | pomlčka | metrický | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -6 | 6x1.0 | 1JM-0706 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -8 | 8x1.0 | 1JM-0708 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -10 | 10x1.0 | 1JM-0710ES | 30 | 14 | 8 | 14 |
| -7 | 7 / 16-20 | -12 | 12x1.5 | 1JM-0712ES | 36 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -14 | 14x1.5 | 1JM-0714ES | 39 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -16 | 16x1.5 | 1JM-0716ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -10 | 10x1.0 | 1JM-0910ES | 31 | 14 | 8 | 17 |
| -9 | 9 / 16-18 | -12 | 12x1.5 | 1JM-0912ES | 36 | 14 | 12 | 17 |
| -9 | 9 / 16-18 | -14 | 14x1.5 | 1JM-0914ES | 36 | 14 | 12 | 19 |
| -9 | 9 / 16-18 | -16 | 16x1.5 | 1JM-0916ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -18 | 18x1.5 | 1JM-0918ES | 37 | 14 | 12 | 24 |
| -9 | 9 / 16-18 | -20 | 20x1.5 | 1JM-0920ES | 40 | 14 | 14 | 27 |
| -9 | 9 / 16-18 | -22 | 22x1.5 | 1JM-0922ES | 40 | 14 | 14 | 27 |
| -12 | 2003-4-16 | -12 | 12x1.5 | 1JM-1212ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -14 | 14x1.5 | 1JM-1214ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -16 | 16x1.5 | 1JM-1216ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -18 | 18x1.5 | 1JM-1218ES | 39 | 17 | 12 | 24 |
| -12 | 2003-4-16 | -20 | 20x1.5 | 1JM-1220ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -22 | 22x1.5 | 1JM-1222ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -26 | 26x1.5 | 1JM-1226ES | 47 | 17 | 16 | 32 |
| -14 | 2007-8-14 | -14 | 14x1.5 | 1JM-1414ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -16 | 16x1.5 | 1JM-1416ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -18 | 18x1.5 | 1JM-1418ES | 42 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -20 | 20x1.5 | 1JM-1420ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -22 | 22x1.5 | 1JM-1422ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -26 | 26x1.5 | 1JM-1426ES | 49 | 19 | 16 | 32 |
| -17 | 1.1 / 16-12 | -18 | 18x1.5 | 1JM-1718ES | 45 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -20 | 20x1.5 | 1JM-1720ES | 46 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -22 | 22x1.5 | 1JM-1722ES | 49 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -24 | 24x1.5 | 1JM-1724 | 48 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -26 | 26x1.5 | 1JM-1726ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727 | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -28 | 28x1.5 | 1JM-1728 | 52 | 23 | 16 | 32 |
| -17 | 1.1 / 16-12 | -30 | 30x2.0 | 1JM-1730 | 52 | 22 | 16 | 36 |
| -21 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-1733ES | 52 | 22 | 16 | 38 |
| -21 | 1.5 / 16-12 | -26 | 26x1.5 | 1JM-2126ES | 53 | 23 | 18 | 36 |
| -21 | 1.5 / 16-12 | -27 | 27x2.0 | 1JM-2127ES | 53 | 23 | 20 | 36 |
| -26 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-2133ES | 55 | 23 | 18 | 41 |
| -21 | 1.5 / 16-12 | -42 | 42x2.0 | 1JM-2142ES | 57 | 23 | 20 | 50 |
| -26 | 1.5 / 8-12 | -42 | 42x2.0 | 1JM-2642ES | 58 | 24 | 20 | 50 |
| -30 | 1.7 / 8-12 | -48 | 48x2.0 | 1JM-3048ES | 65 | 28 | 22 | 55 |
podrobnosti
Hydraulické armatúry JIC sa stali v tomto odvetví populárnymi vďaka svojim početným výhodám. Tieto armatúry ponúkajú bezpečné a spoľahlivé spojenie, ktoré je nevyhnutné pre hydraulické systémy. Tu sú niektoré kľúčové výhody používania hydraulických armatúr JIC:
1. Tesniace spojenie: Spojky JIC poskytujú tesné utesnenie, ktoré zabraňuje úniku a zaisťuje efektívnu prevádzku hydraulických systémov.
2. Jednoduchá inštalácia: Armatúry JIC sa inštalujú rýchlo a jednoducho, čo šetrí čas a náklady na pracovnú silu.
3. Odolné a dlhotrvajúce: Tieto armatúry sú vyrobené z vysoko kvalitných materiálov, vďaka čomu sú trvácne a odolné voči opotrebovaniu. To zaručuje dlhú životnosť armatúr.
4. Všestranné: Tvarovky JIC sú kompatibilné so širokou škálou hydraulických systémov a zariadení, vďaka čomu sú všestrannou voľbou pre rôzne aplikácie.
5. Vysoký tlak: Tvarovacie kusy JIC odolávajú vysokému tlaku, vďaka čomu sú vhodné na použitie v náročných hydraulických aplikáciách.
6. Štandardizovaný dizajn: Tvarovacie kusy JIC majú štandardizovaný dizajn, ktorý umožňuje zameniteľnosť a kompatibilitu s inými tvarovacími kusmi, čím sa znižuje riziko chýb počas inštalácie.
Záverom možno povedať, že hydraulické armatúry JIC ponúkajú množstvo výhod, vďaka ktorým sú obľúbenou voľbou pre hydraulické systémy. Ich tesné spojenie, jednoduchá inštalácia, odolnosť, všestrannosť, vysoký tlak a štandardizovaný dizajn z nich robia ideálnu voľbu pre rôzne aplikácie.
Dodávanie hydraulických armatúr JIC do miest v
